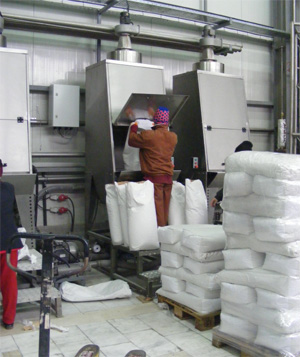

manual bag tipping

Bag Tipping

Manual bag tipping systems allow powdered and granular raw materials delivered in sacks to be fed into the process easily and without dust. Where required, DOSERAY designs the station together with a pneumatic or mechanical conveying system.

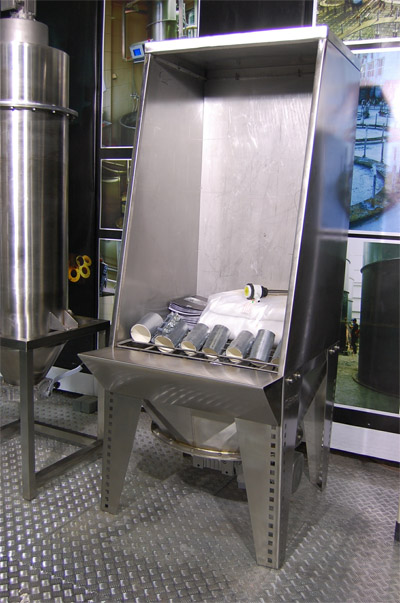

manual tipping hopper

Sack Emptying Systems

Sack emptying systems make it easy to discharge granular and powdered bulk solids from 25-50 kg packages. DOSERAY adapts this equipment to the type of raw material and to how it needs to be transferred to your storage silos.

Bag Tipping and Sack Emptying: Manual Tipping Hopper

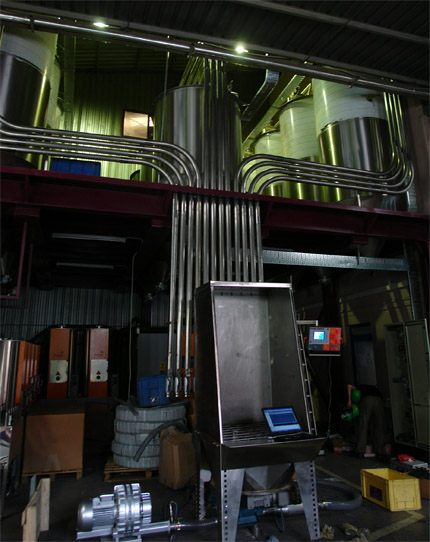

In some processes, powdered or granular raw material arrives at the plant in sacks or bags rather than in bulk. Transferring these raw materials to storage silos requires dedicated equipment suited to the type of material. These are units in which the bag contents are emptied and, if necessary, then conveyed pneumatically or mechanically. In short, this equipment, used to take 25-50 kg packages delivered to the plant into the process, is known as a manual loading station or by similar names. Manual loading stations can feed a storage hopper directly, or, as shown in the image below, form part of a pneumatic conveying line to reactors, silos, tanks and similar systems.

The type of conveying (vacuum or pressure) and the nature of the material (granules or powder) call for different types of these units. Sack emptying units for micronised materials in particular can be used together with a filter.

Solutions for Micronised Materials


If manual tipping hoppers and manual sack emptying systems are to be used to feed very dusty, micron-sized materials into the process, they must have a filtered extraction system to prevent dust in the working area.

Packaged dust collection, pulse-jet filter and cyclone solutions, selected according to your process, the particle size of the bulk solid being conveyed and whether the system runs under vacuum or pressure, keep the working environment within limits that do not harm human health.

For pulse-jet filters, we work with our European solution partners as well as domestic filter media manufacturers and specialist filter element producers to build pulse-jet cleaning systems of our own design. Depending on the process, filter elements are supplied as bags, cassettes and cartridges, with 100% Teflon (DuPont), antistatic, water-repellent and FDA-approved options. Our production programme also includes filter systems tailored to your plant, using special filter media resistant to heat, moisture and fire as the process requires.

Under Article 1 of the Regulation on the Control of Industrial Air Pollution, published in Official Gazette No. 27277 dated 3/7/2009, dust emissions in flue gas must not exceed 100 mg/Nm³. The filter media we use achieve dust emissions of <1 mg/Nm³. The filter medium is class M according to DIN EN 60335-2-69 and offers filtration efficiency of up to 99.9% for dust between 0.2 and 2 μ. When working with micronised materials, the operator emptying the product and the surrounding area can be exposed to dust, which is unacceptable from an occupational health and safety (OHS) standpoint.
For this reason, our manual raw material tipping and sack emptying units vary according to the product to be handled.

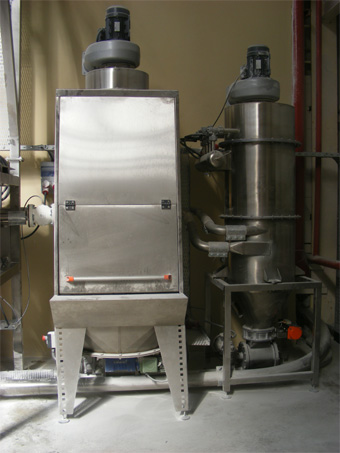

Filtered Systems

When working with micronised materials, the operator emptying the product and the surrounding area can be exposed to dust, which is unacceptable from an occupational health and safety (OHS) standpoint. For this reason, our manual raw material tipping and sack emptying units vary according to the product to be handled. manual bag tipping

Which Manual Tipping Station?

The most important factor in choosing the type of manual sack emptying system is the process that follows discharge. The nature of the product is another major factor. For dusty raw materials in particular, a filtered manual tipping unit should be chosen.

25-50 kg Bag Tipping and Sack Emptying

manual tipping unit manual sack emptyingsack emptying unitsack emptying

Where 50 kg sacks in particular need to be fed into the system, a unit with a pneumatic lifting aid should be used so that operators can work more comfortably. Preferred from an OHS standpoint, this unit is an ideal solution for transferring flour and sugar delivered in sacks into the process. Its vibrating equipment promotes flow and makes operation even easier.

sieve, screening, sack emptying with screening
