What Is Big Bag Discharging?
Big bag discharge stations are equipment that feeds bulk raw materials delivered to the plant in large quantities into the process. The equipment varies with the type of raw material; different solutions are used for hard-to-flow raw materials. DOSERAY's product range includes dozens of big bag discharging and filling units that can be tailored to each company. For food and chemical processes, material options such as AISI 304 and AISI 316 are available, along with many options for filling and discharging under N2, vacuum or other conditions.
How Does a Big Bag Discharge Unit Work?
Big bag discharging systems can vary according to the process. Loading by forklift or by hoist distinguishes the systems from one another; this choice depends on the flowability of the bulk raw material and the available space. The operating steps of the system are briefly as follows:

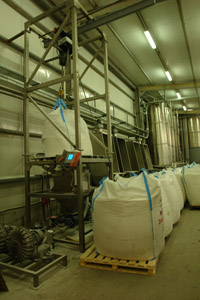

For hoist operation, a 2-tonne, 6 m chain, 4-motion, dual-speed hoist from SWF or an equivalent brand is mounted on the IPE 250 beam at the top of the discharge station. The hoist travels 1,500 mm forward, clear of the main frame of the big bag discharge platform, and comes to the front to pick up the bag. The bag's lifting loops are attached to the lifting cross of the discharge unit; the bag is placed on the discharge cone and its spout is clamped shut by pneumatic cylinders. The tied spout of the big bag is then untied; flow does not yet start at this stage.

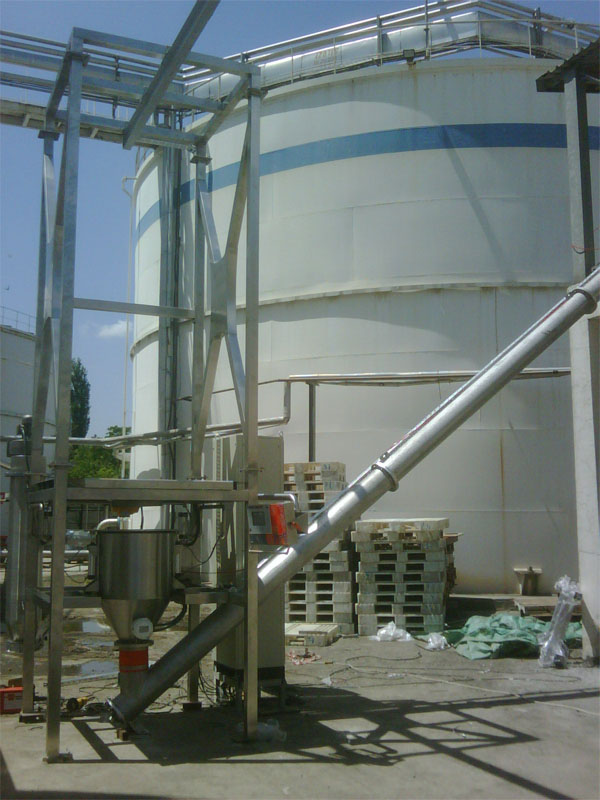

The discharge outlet is opened on a scale of 1–10, depending on the flow, from the touch panel or from the panel right next to the operator. When flow starts, the inverter-driven screw conveyor or pneumatic conveying unit is also started from the panel. Depending on the flow, the two vibrators on the station run intermittently. In addition to vibration, massage devices and a discharge element that periodically lifts and agitates the big bag from below also stabilise the flow. Thanks to the vibrators, the product in the big bag falls into the intermediate collection cone, and the raw material in the intermediate collection cone falls into the conveyor or the relevant line. The vibrators, pneumatic cylinders and screw conveyors are all configured from the touch panel on the big bag discharge unit.
When handling dusty materials, the system's filter is operated during discharging to keep the area dust-free. Our high-capacity big bag discharging systems can optionally be connected side by side with multiple stations.


Big Bag Discharge Unit Features
• Modular design easily adapted to different raw materials
• Additional discharge support with electric or pneumatic vibrators
• Innovative discharge system custom-designed for the raw material properties
• Different discharge techniques for forklift or hoist + monorail systems
• Easy synchronisation with dosing, feeding or other process equipment
• Process-specific scenarios can be created
• Different flow-aid methods (paddle arms, vibration, 2- or 4-way base movement), lump breaker option, design suitable for multiple raw material types
• High safety: two-hand control system to EN 2006/42
Why Choose DOSERAY Big Bag Discharging?
Big bag discharging systems are not limited to a single type or form; they vary according to the process. That is why our engineering portfolio includes dozens of types of big bag discharge units.
Our big bag discharge units differ according to dust emissions in the area, the flow behaviour of the raw material, hoist or forklift operation, the hygroscopic and caking properties of the product, and other operating characteristics.
Which Big Bag Discharge Unit Should You Use?
The most important factors that determine the type of big bag discharging system are the conveying method after discharge (pneumatic or mechanical) and the flowability of the product. In addition, dust generation due to the product's micron size may require filter systems, lump breakers and external equipment. The system must therefore be designed according to these criteria.
Big Bag Discharging Operation

It should be remembered that big bag discharging is a time-consuming operation. For safety reasons, the limited speed of the operator and the hoist, together with occupational health and safety directives, directly affect the capacity of the system. The capacity of our big bag discharge units is therefore limited to 6 big bags per hour. Capacity in tonnes depends on the weight of the big bag.
This system must not be confused with the bag-bursting method used with forklifts for products such as cement.
