Diverter Valve

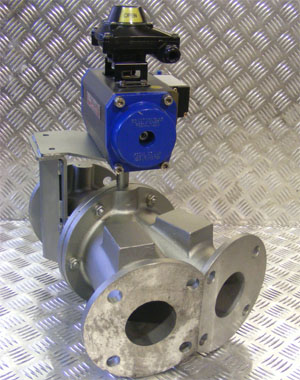

We manufacture diverter valves, three-way valves and flap-type diverters for pneumatic conveying lines. They route product from a single line to different silos or equipment, giving your plant flexibility.

multiport pneumatic valve

Multiport Diverter Valves

We offer multiport, selector and multi-way valves for pneumatic conveying lines. In plants with multiple destinations, they ensure orderly distribution of the product flow.

Where Are Diverter Valves Used?

They are used to send all kinds of powdered and granular materials from one point to several points, primarily in the food industry but also in the plastics, pharmaceutical and chemical industries. We manufacture our standard pneumatic diverter valves in diameters of 60.3–220 mm, in AISI 304 stainless steel, cast aluminium, cast steel and Ni-Hard. We also provide manufacturing and engineering of larger diverter valves for special projects. Pneumatic diverter valves are designed for a maximum internal pressure of 2 bar; in short, they can only be used in blower-based pneumatic conveying and high-pressure medium-phase conveying systems. They can also switch position while the blower is running.multiport valve

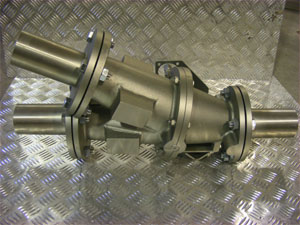

The two-way flap diverter valve is designed to route powders, pellets or granules used in pneumatic conveying, in other words all bulk solids, from one point to another with minimal pressure loss and high sealing tightness. Diverter valves are suitable for conveying free-flowing products, whether abrasive or non-abrasive; they differ only according to the process conditions. Body material options include AlMg3, C1050 and 42CrMo4. They can be used in pneumatic conveying systems operating at up to 2 bar positive pressure and -0.5 bar negative pressure, and are easy to maintain. The flap diverter valve can be used in almost every industry with pneumatic conveying, for all kinds of mildly abrasive powdered or granular materials.

diverter valve, routing valverouting valvemultiport valve, multiport diverter valve

diverter valvemultiway port



Multiport Diverter Valves

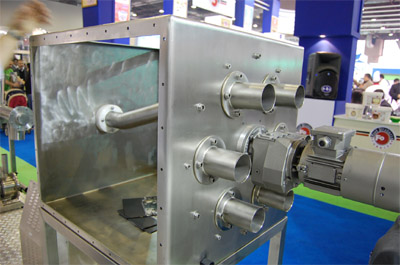

Multi-way pneumatic diverter valves (multiports) are used where several two-way diverter valves would fall short, as they make automation, application and monitoring easier. They work rather like a manifold, whereas two-way diverter valves work like slip roads branching off a motorway. The only drawback of multiport installations is that they require more piping if the process continues in the same direction; even so, the two have different areas of application. With a single inlet and 4, 6, 8, 10, 12, 16... outlets, custom solutions can be produced in AISI 304 for 76.1 mm and 200 mm pipes and for all DN-standard pipes. They are actively used in the fishing industry and are also widely used as selector valves. Because the flaps of a multiport valve operate more slowly than those of other three-way valves, the valve is not switched while the line is under pressure.

Slide-Type Pneumatic Diverter Valves

Unlike flap-type diverters, opening and closing is performed by a slide. This type is suitable only for processes handling the same kind of raw material. Its advantage over the flap type is a longer service life; its drawback is that, by design, it retains a certain amount of product depending on its diameter. In terms of size, as with the other type, custom solutions can be produced for all DN-standard pipes.

pneumatic diverter valvediverter valve

multiport valve

Custom-Designed Diverter Valves

Every process has its own regime, and in some cases standard solutions may not be enough. That is why we manufacture custom diverter valves and multiport valves to suit your process: wear-resistant, temperature-sensitive, high-capacity, and designed to operate under different temperature, pressure and atmospheric conditions.




Full-Bore Pinch Valve Diverters

pinch diverter valve

In some processes, effects such as cross-section narrowing and abrasiveness may call for a special design. In pressure or vacuum lines, the way these situations are addressed can vary. For such processes, we offer custom-built solutions based on pinch valves. Full bore is provided at different angles such as 22°, 30°, 45° and "Y" to meet the required specifications. These diverters are widely used, especially in vacuum lines, in two-way, three-way and multi-way versions. Sealing by inflation of the inner sleeve, which is inherent to the pinch valve, and high throughput when fully open are generally the reasons for choosing it. This product is suitable when the same type of bulk solid raw material passes through the line, and is particularly recommended for abrasive processes. It is much easier to maintain than its counterparts: service is carried out simply by replacing the pinch valve sleeve, without changing the diverter body. In addition, because product runs on product, wear is kept to a minimum. Custom-built in all DN sizes, with 2 or 3 outlets.

diverter valvediverter pinch valvediverter valve

Diverter Valve Model

Dimensions
(mm)

Directional Control Valve
Single Coil

Air Pressure
(bar)

A

B

C

ØD

Ø Pipe Sizes Used

DIV76

76

400

362

90

60.3-76.1mm

5/2 – 24 V DC

3.0

DIV114

114

600

453

115

101-114.3mm

5/2 – 24 V DC

3.0

DIV150

150

800

516

140

125-150mm

5/2 – 24 V DC

3.0°

Three-Way Trouser Diverter Dimensions 30–45°

MODEL

A

B

C

D

E

F

G

H

DSR-PAN3-30°-150

155

216

345

357

30

204,50

116

400

DSR-PAN3-45°-150

155

216

266

360

45

190

116

345

DSR-PAN3-30°-200

200

266

448,50

402

30

251

116

519

DSR-PAN3-45°-200

200

266

323

402

45

231,50

116

419

DSR-PAN3-30°-250

250

316

521

452

30

298

116

601

DSR-PAN3-45°-250

250

316

406,50

452

45

274

116

520

DSR-PAN3-30°-300

300

390

622,50

502

30

367

116

721

DSR-PAN3-45°-300

300

390

430,50

502

45

337

116

570



Two-Way Diverter Valve

two-way diverter valve

Depending on the process, trouser diverters are generally built with 30° or 45° angles; the 45° model in particular can be used symmetrically. Our production range covers 150x150–400x400 and Ø DN150–DN400.

Trouser diverters are devices used to route the mechanical (gravity) flow of dry bulk solids in atmospheric processes. They are actuated in three ways: manual, pneumatic and motorised. All units are fitted with position switches and work seamlessly with PLC automation systems. With a rolling bearing arrangement and an easy-maintenance construction, they are maintenance-friendly. In terms of sealing, they are not recommended for use in pressurised lines. The body material can be selected from different steels such as AISI 304, AISI 316, S235JR and HARDOX.

They are manufactured to suit DIN-standard pipes; process-specific square construction is also part of our production range. Food-grade FDA-approved silicone or polyurethane seal options are available. The unit is basically square, with a reducer providing the transition to a round connection. The internal flap that performs the diversion is replaceable.

A three-way trouser diverter is a type of industrial valve that routes bulk raw materials (powders, granules, pellets, etc.) from a single inlet line in two different directions, or from two separate lines into a single outlet. It takes its name from its shape, which resembles the letter "Y" or an upside-down pair of trousers.

It is widely used in pneumatic conveying and free-flow (gravity) lines in the cement, food, chemical, mining and plastics industries.


two-way diverter valve two-way diverter valve

Custom diverter valve manufacturing for all pipe diameters

Slide-type diverter valves respond faster and are more flexible than other diverter valves. Because they are of welded construction, lead times are shorter and they can be made to any required custom size.
