Storage Systems
Our area of expertise in silo manufacturing is food processes in particular: flour, sugar and PVC silos and silos for milled intermediates. Silos are built according to the flow behaviour of the powdered or granular product, and their design also varies with the filling and discharge method; in other words, the filling and discharge method is what fundamentally defines a silo.
Flour silos, sugar silos, plastic raw material and granule silos, stainless steel silo manufacturing
A silo is, in short, a structure in which powdered or granular raw material is stored, built in various geometric shapes according to process requirements, providing the largest volume on the smallest footprint. Silos are of course used for storage, but they can also act as process equipment and carry drying, dehumidifying and conditioning devices. The silos we manufacture fall into two main types:
1) Indoor silos
2) Outdoor silos
Indoor silos

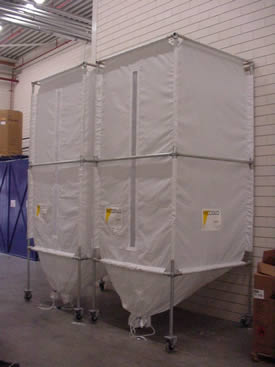

Trevira flexible polyester silos
Trevira polyester silos are made from R534 and R024 fabrics at 430 g/m² and 725 g/m² with a 60° cone; the cone sections are supported, and the silos are designed and built to the required dimensions for pressure, vacuum and screw conveying. They are used in process design and, thanks to their flexibility, are also a popular choice for indoor storage needs that arise later.
Outdoor silos
Generally made of stainless steel or aluminium, with a skirt or on legs. Our silos can be produced, mainly in AISI 304, in diameters from 1,500 mm to 4,000 mm. They can be used in double-walled, rock-wool-insulated and water-heated processes. Our standard stainless steel silos are offered with options including a filter, ship's ladder, bottom and top manholes, filling pipe inlet nozzles and level sensor connections.
Liquid storage
Depending on the nature of the liquid to be stored, our manufacturing programme covers stainless steel tanks that are jacketed, double-walled, fitted with coils, with dished, conical and manhole-equipped designs, in a wide range of sizes to suit the process. Glucose, lecithin, invert sugar and liquid yeast applications are within our general scope.
Storage methods
Although it may look simple at first glance, storing, conveying and dosing raw materials with specific properties requires engineering know-how and experience. Dozens of processes installed by our experienced team in Europe and in Türkiye have proven themselves by running without interruption for many years.
Trevira silo dimensions
Height – Base
2,20m
2,50m
2,80m
3,00m
3,20m
3,40m
3,60m
3,80m
4,00m
4,20m
4,50m
4,80m
5,10m
5,40m
5,70m
6,00m
6,60m
1,80 X 1,80m
4,0
5,0
6,0
6,6
7,3
7,9
8,6
9,2
9,9
10,5
11,5
12,5
13,1
14,1
-
-
-
2,00 X 2,00m
4,7
5,9
7,1
7,9
8,7
9,5
10,3
11,1
11,9
12,7
13,7
14,9
15,9
17,1
18,3
-
-
2,20 X 2,20m
5,3
6,8
8,2
9,2
10,2
11,2
12,1
13,1
13,8
14,8
16,2
17,7
18,9
20,3
21,8
-
-
2,40 X 2,40m
5,9
7,7
9,4
10,6
11,7
12,9
14,0
14,9
16,0
17,2
18,9
20,3
22,1
23,8
25,5
27,3
-
2,60 X 2,60m
6,5
8,5
10,6
11,9
12,9
14,3
15,6
17,0
18,03
19,7
21,4
23,4
25,4
27,5
29,5
31,0
-
2,80 X 2,80m
-
9,3
11,7
13,2
14,4
16,0
17,6
19,1
20,3
21,9
24,2
26,6
28,9
30,7
32,4
34,8
-
3,00 X 3,00m
-
10,0
12,3
14,1
15,9
17,7
19,5
20,8
22,6
24,4
27,1
29,8
31,9
33,9
36,6
39,3
-
3,20 X 3,20m
-
-
-
14,8
16,8
18,9
20,9
23,0
25,0
27,1
30,1
32,5
34,8
37,8
40,9
44,0
50,1
3,32 X 3,32m
-
-
-
-
17,6
19,8
22,1
24,3
26,5
28,7
32,0
34,5
36,9
40,2
43,5
46,9
53,5
3,62 X 3,62m
-
-
-
-
-
21,5
24,1
26,8
29,4
31,0
34,0
37,9
41,8
45,8
49,7
53,6
61,5
Silo volumes (m³)
|
Height – Base |
2,20m |
2,50m |
2,80m |
3,00m |
3,20m |
3,40m |
3,60m |
3,80m |
4,00m |
4,20m |
4,50m |
4,80m |
5,10m |
5,40m |
5,70m |
6,00m |
6,60m |
|
1,80 X 1,80m |
4,0 |
5,0 |
6,0 |
6,6 |
7,3 |
7,9 |
8,6 |
9,2 |
9,9 |
10,5 |
11,5 |
12,5 |
13,1 |
14,1 |
- |
- |
- |
|
2,00 X 2,00m |
4,7 |
5,9 |
7,1 |
7,9 |
8,7 |
9,5 |
10,3 |
11,1 |
11,9 |
12,7 |
13,7 |
14,9 |
15,9 |
17,1 |
18,3 |
- |
- |
|
2,20 X 2,20m |
5,3 |
6,8 |
8,2 |
9,2 |
10,2 |
11,2 |
12,1 |
13,1 |
13,8 |
14,8 |
16,2 |
17,7 |
18,9 |
20,3 |
21,8 |
- |
- |
|
2,40 X 2,40m |
5,9 |
7,7 |
9,4 |
10,6 |
11,7 |
12,9 |
14,0 |
14,9 |
16,0 |
17,2 |
18,9 |
20,3 |
22,1 |
23,8 |
25,5 |
27,3 |
- |
|
2,60 X 2,60m |
6,5 |
8,5 |
10,6 |
11,9 |
12,9 |
14,3 |
15,6 |
17,0 |
18,03 |
19,7 |
21,4 |
23,4 |
25,4 |
27,5 |
29,5 |
31,0 |
- |
|
2,80 X 2,80m |
- |
9,3 |
11,7 |
13,2 |
14,4 |
16,0 |
17,6 |
19,1 |
20,3 |
21,9 |
24,2 |
26,6 |
28,9 |
30,7 |
32,4 |
34,8 |
- |
|
3,00 X 3,00m |
- |
10,0 |
12,3 |
14,1 |
15,9 |
17,7 |
19,5 |
20,8 |
22,6 |
24,4 |
27,1 |
29,8 |
31,9 |
33,9 |
36,6 |
39,3 |
- |
|
3,20 X 3,20m |
- |
- |
- |
14,8 |
16,8 |
18,9 |
20,9 |
23,0 |
25,0 |
27,1 |
30,1 |
32,5 |
34,8 |
37,8 |
40,9 |
44,0 |
50,1 |
|
3,32 X 3,32m |
- |
- |
- |
- |
17,6 |
19,8 |
22,1 |
24,3 |
26,5 |
28,7 |
32,0 |
34,5 |
36,9 |
40,2 |
43,5 |
46,9 |
53,5 |
|
3,62 X 3,62m |
- |
- |
- |
- |
- |
21,5 |
24,1 |
26,8 |
29,4 |
31,0 |
34,0 |
37,9 |
41,8 |
45,8 |
49,7 |
53,6 |
61,5 |
|
|
Silo volumes (m³) | ||||||||||||||||
Where are Trevira fabric silos used?
Trevira silos are a storage solution generally chosen for indoor and confined-space applications. They are suitable for storing powdered and granular raw materials and are FDA certified. Copper threads woven into the fabric provide earthing, giving the silo antistatic properties, so it can also be used in ATEX processes without difficulty. They are ideal for vacuum, pressure and vibrating discharge cone applications.
In addition, with equipment specified from the outset such as a filling nozzle, level sensor and filter, they have the same range of applications as steel silos. Thanks to their high flexibility, they are widely used, especially in food processes.
