Bin Activators, Bin Discharger, Silo Discharger

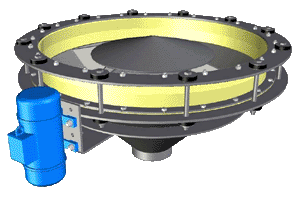

 Today, the most effective bin activator designs incorporate the use of an internal cone-shaped baffle which is rigidly attached to the body of the bin activator by means of rugged structural tubular members. The entire bin activator unit moves horizontally in response to centrifugal forces generated by the unbalanced weights of an attached vibrator.

Material flows smoothly around the primary baffle and when it narrows down and squeezes its way toward the outlet, the secondary baffle prevents it from compacting and jamming. Flow through the outlet is constant and upon demand. No need for cycling.. no need for excessively large outlets.

The cone baffle relieves the weight of the material from the lower section of the bin activator, and acts like a wedge as it moves beneath the material and pushes it in all areas adjacent to the cone's surfaces. This powerful force is also transmitted to the material in the upper portion of the bin as the motion is carried from particle to particle.

These moving particles cannot bridge or rat-hole, and flow freely around the periphery of the baffle toward the outlet of the bin activator. If the outlet is large enough and there is no downstream equipment to impede the flow, positive discharge is accomplished.

All SULTAN MAKINA Bin Activators are fitted with heavy duty, long life hanger arms and isolation bushes. These items have been load tested by independent teSting authorities and are guaranteed to provide superior isolation.
bin activator,bin aktivators, bin discharger, bin activators, silo discharger, vibro silo discharger, vibration silo discharger,discharge, bin activator,silo activators, silo bin activator,vibration discharger,bin activator,bin activators,bin activator, bin activators,silo discharge, bin activator, bin activator process, bin activator silo discharge,silo discharger bin activators, vibration bin activators,silo unloader, silo unloaders, silo unloader process,silo discharge,silo discharger, silo discharge process,mechanical silo discharge, screw silo discharge,mechanic silo discharge,silo unload,silo unloader,silo unloader process,silo unloading process,silo unload process,hopper discharge,hopper discharger,silo discharger,silo discharge process, silo discharger seller,silo discharger manufacture,silo discharge producer,bin silo discharger

sample bin activators draw: binactivator.DWG

AISI304 Bin Activators

AISI316 Bin Activators

Steel Bin Activators
